Memory Malfeasance

A while ago I started getting weird crashes on my desktop machine — Gargleblaster. Once in a while, PHP, or Node, would crash. And browser tabs kept turning blank, with Firefox crashing altogether once in a while too.

At first I thought there was some memory corruption in a system library, but neither valgrind or GDB would show any issues — if the problem could be reproduced at all. It was also very random, but the problem went away for a short while after a reboot.

I suspected the worst: Broken memory.

In the past I had used tools like memtest86, and memtest86+ — both available as packages on my Debian system. There are some complications with both of these on newer UEFI BIOS systems. This meant that when I tried them, the system would not even boot. A new version of memtest86+ was supposed to fix this, but that did not work either for me.

I decided to live with it for a while, but after another total loss of tabs (oh dear!), I stumbled upon a different tool: PCMemTest. This did boot, but their documentation page says "The UHCI USB controller is not yet supported", which is needed for USB keyboards.

I was happily surprised that Debian's APT repository also included a package for this memory testing tool. After I installed it, I rebooted my machine to see what it would say. The result:

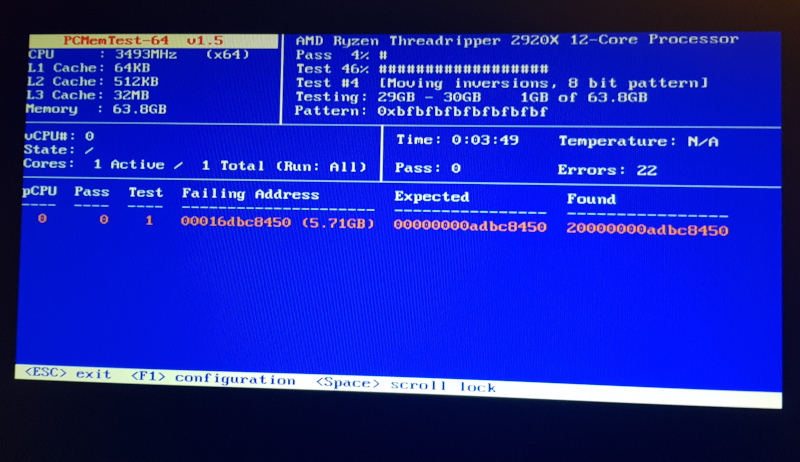

PCMemTest showing broken memory

PCMemTest allows you to create a configuration line for the Grub configuration which the Linux kernel uses while booting up to exclude certainly parts of physical memory from being used. However, without the USB keyboard working, I could not not navigate to that feature.

Then I read that the kernel itself also has a memory test tool built in: the memtest kernel parameter.

To include the memory test when the system boots, update the GRUB_CMDLINE_LINUX_DEFAULT line in /etc/default/grub to:

GRUB_CMDLINE_LINUX_DEFAULT="quiet pcie_aspm=off memtest=4"

And then run update-grub.

Now when the system starts, the kernel will run a memory test and automatically exclude any memory that it finds not working.

On my system this looks in the dmesg output like:

[    0.000000] early_memtest: # of tests: 4
[    0.000000]   0x0000000000100000 - 0x0000000001000000 pattern aaaaaaaaaaaaaaaa
[    0.000000]   0x0000000001020000 - 0x0000000004000000 pattern aaaaaaaaaaaaaaaa
[    0.000000]   0x000000000401e000 - 0x0000000009df0000 pattern aaaaaaaaaaaaaaaa
…
[    0.000000]   0x0000000100000000 - 0x0000000180000000 pattern 5555555555555555
[    0.000000] ------------[ cut here ]------------
[    0.000000] Bad RAM detected. Use memtest86+ to perform a thorough test
                           and the memmap= parameter to reserve the bad areas.
…
[    0.000000]   5555555555555555 bad mem addr 0x000000016dbc8450 - 0x000000016dbc8458 reserved
[    0.000000]   0x000000016dbc8458 - 0x0000000180000000 pattern 5555555555555555
[    0.000000]   0x0000000180410000 - 0x0000000727200000 pattern 5555555555555555
[    0.000000]   0x000000072980d000 - 0x000000107f300000 pattern 5555555555555555
[    0.000000]   0x0000000000100000 - 0x0000000001000000 pattern ffffffffffffffff
…
[    0.000000]   0x000000072980d000 - 0x000000107f300000 pattern 0000000000000000

The line bad mem addr 0x000000016dbc8450 - 0x000000016dbc8458 reserved is saying that the kernel excluded that section of memory because it found it to be broken.

Since I booted my system 16 days ago, I have no longer seen any unexplained crashes. Yay!

At some point I will need to replace this memory, if I find out which of the four memory modules it is. That is a job for some other time.
