Flat vs. Sphere

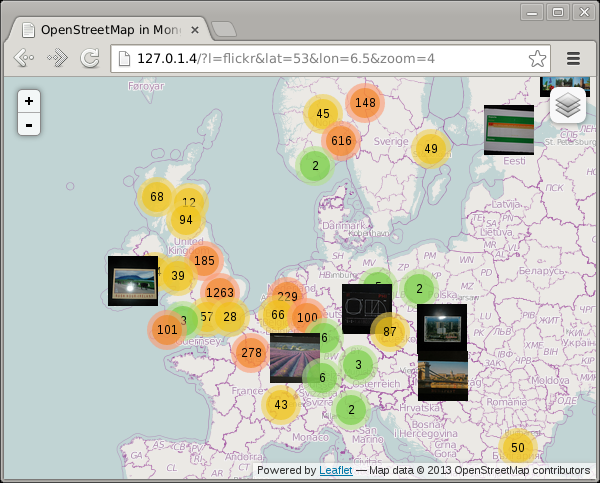

For the preparation of my Finding Pubs... (and other things) presentation that I gave at the PHP NorthWest usergroup some time ago I created a demo that shows all my flickr photos on a map. For example like:


This example shows photos in the UK, Norway and Sweden as well as in Paris.

In order to not find too many photos that are not going to be in the portion of the world that the display covers, I add a bounding box to my find() query:

$polygon = GeoJSONPolygon::createFromBounds(
        min( 90, (float) $_GET['n'] ),
        min( 180, (float) $_GET['e']) ,
        max( -90, (float) $_GET['s'] ),
        max( -180, (float) $_GET['w'] )
);

$c = $d->selectCollection( 'flickr' );
$query = array(
        LOC => array(
                '$geoWithin' => array(
                        '$geometry' => $polygon->getGeoJSON(),
                ),
        ),
);
$s = $c->find( $query )->limit( 8000 );

The North, East, South and West points are being passed as argument to the fetch-poi.php script like: http://127.0.1.4/maps-flickr/fetch-poi.php?n=65.44000165965534&e=32.51953125&s=46.07323062540838&w=-19.51171875

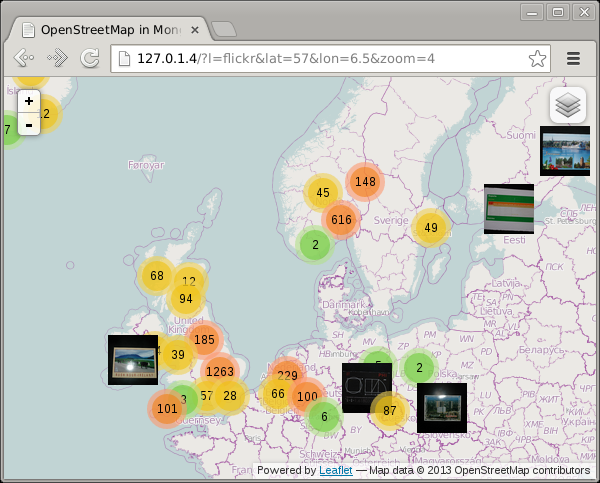

Now if we scroll up a bit to include Iceland in the map, then we see that the photos in Paris disappear:


How is that possible? Let's first see what our polygon looks like:

<?php
include 'classes.php';

$_GET = array(
        'n' => 65.44000165965534,
        'e' => 32.51953125,
        's' => 46.07323062540838,
        'w' => -19.51171875,
);

$polygon = GeoJSONPolygon::createFromBounds(
        min( 90, (float) $_GET['n'] ),
        min( 180, (float) $_GET['e']) ,
        max( -90, (float) $_GET['s'] ),
        max( -180, (float) $_GET['w'] )
);

var_dump($polygon);
?>

Which outputs:

class GeoJSONPolygon#1 (1) {
  public $pg =>
  array(1) {
        [0] =>
        array(5) {
          [0] =>
          array(2) {
                [0] => double(32.51953125) [1] => double(65.440001659655)
          }
          [1] =>
          array(2) {
                [0] => double(-19.51171875) [1] => double(65.440001659655)
          }
          [2] =>
          array(2) {
                [0] => double(-19.51171875) [1] => double(46.073230625408)
          }
          [3] =>
          array(2) {
                [0] => double(32.51953125) [1] => double(46.073230625408)
          }
          [4] =>
          array(2) {
                [0] => double(32.51953125) [1] => double(65.440001659655)
          }
        }
  }
}

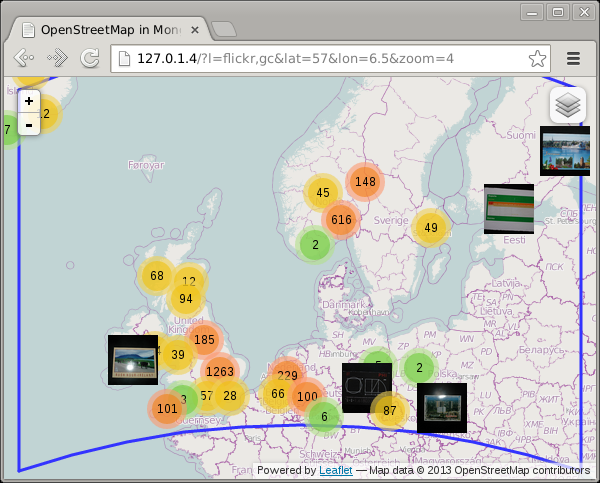

The 5 array elements in here reflect in order the North East point, the North West point, the South West point, the South East point and again the North East point. If we draw lines between those points on the map, we find:


Which instantly shows you why I got missing photos! As you can see, the shortest line between vertical lines is a straight line on a sphere, but the horizontal lines are not straight. The shortest path on a sphere, as expressed with a Spherical Mercator projection is often a curve, called the Great Circle path. Because MongoDB's 2dsphere index is a true spherical index (as opposed to the 2d index which cheats), the polygon it uses to find the photos is not a square as you can see in the image above. This illustrates the main difference between spherical geospatial queries, and ones that only deal with a flat rectangular map.

Leaflet, the mapping library that I use, does not actually draw lines as Great Circle paths, so I had to calculate them myself. The maps-great-circle code on GitHub shows how I did that. Basically I created points along the Northern and Southern border on the exact latitude.

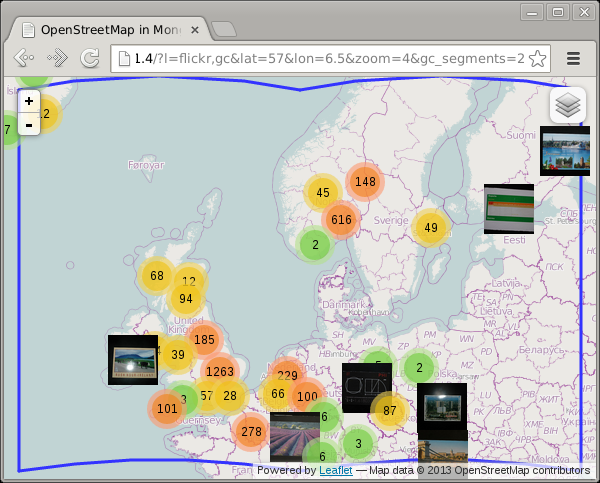

If you create one intermediate point, the result is:

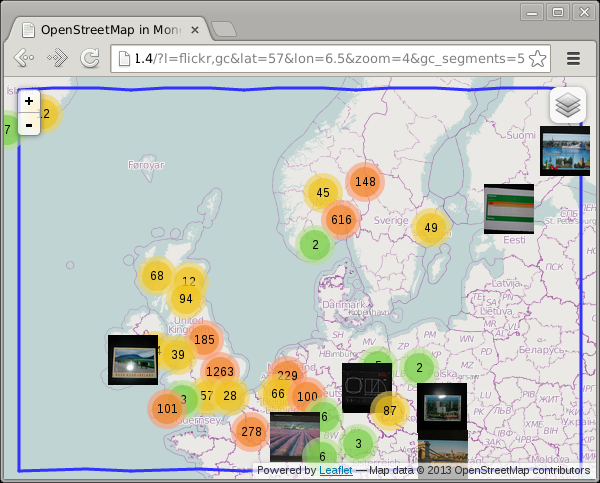

And with five intermediate points you hardly notice the problem anymore:


Play around with the gc_segments URL parameter to see for yourself:

Next up in the series is "Showing all the World's Timezones" which will explain how I created the tiles that highlight the timezones at http://maps.derickrethans.nl/?l=timezones&lon=50&lat=30&zoom=3
