Spatial Indexes: Calculating Distance

During my "Geolocation and Mapping with PHP" talk that I've given a few times I briefly touch on the subject of indexes on data-sets of spatial data. This isn't as simple as just solving Pythagoras theorem and this article is meant to clarify this.

The flat Earth model

Pythagoras theorem can be used to calculate the distance between two points quite easily; you take the square root of the square of the absolute vertical distance plus the square of the absolute horizontal distance; in short:

d = √(|x1 - x2|² + |y1 - y2|²)

or in PHP:

$d = sqrt(pow(abs($x1 - $x2), 2) + pow(abs($y1 - $y2), 2));

If you take for example London's coordinates (51.50°N, 0.13°W) and Amsterdam's coordinates (52.37°N, 4.90°E) we can calculate the distance with:

d = √(|-0.13 - 4.90|² + |51.50 - 52.37|²)
d = √(5.03² + 0.87²)
d = √(26.0578)
d ≅ 5.10

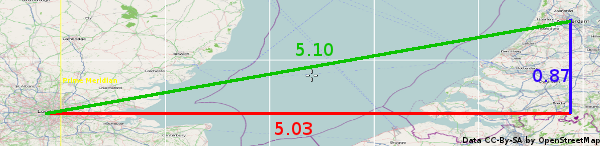

And on a map:


But what does a difference of "5.10°" actually mean? How far is this in useful units, such as meters?

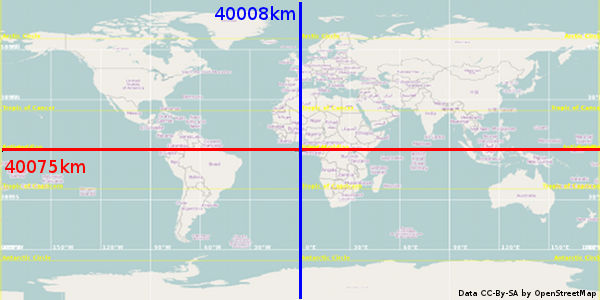

If we show the whole map of which the above is an extract, we come to:


The distance around the equator, and through the poles is roughly the same, 40.000km (please be aware that the blue line only shows half of it, the other half is going through the anti-meridian at 180°W/E). 5.03° in East-West difference is then about 40 000 ✕ (5.03/360) = 559 km and the North-South difference about 20 000 ✕ (0.87/180) = 97 km. Using those numbers within the Pythagoras theorem we end up with a distance of √(559² + 97²) = 567 km. Although the calculation is correct, the answer is still wrong. The real distance is closer to 360 km.

The spherical Earth model

If we look at the Earth in its original (mostly) spherical 1 shape, then it's clear that 10° longitude (East/West) at 60°N is going to be less of a distance than 10°E/W at the equator. It's actually fairly easy to calculate how much 1° longitude is at 60°N by using cos(60) * 1/360 * 6371 * 2π 2. Or in PHP:

<?php
$oneDeg =
        cos(deg2rad(60)) * // adjustment for latitude and radians/degrees
        1/360 * // 1 out of 360°
        6371 * 2 * M_PI, // circumference of the Earth at the equator
        "\n";
?>

This returns 55.597 km per ° for 60°N. The same distance in degrees on the Equator gives 6371 * 2 * M_PI / 360 = 111.195.

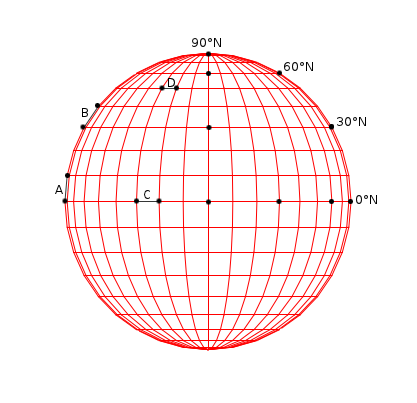

The following diagram shows ones more that latitudinal degrees always correspond with the same distance in kilometer, whereas longitudinal degrees differ.


In the diagram the line A is a line from 0°N, 90°W to 10°N, 90°W. It has the same length as line B, from 30°N, 90°W to 40°N, 90°W: a 36th of the circumference of the Earth through the poles. Line C, from 0°N, 30°W to 0°N, 20°W has the same length. Line D however, from 50°N, 30°W to 50°N, 20°W is shorter by a factor of cos(50°) ≅ 0.64.

If we look again at the distance between London and Amsterdam, ignore the differences in latitude and instead pick the average, we see:

<?php
$d = abs(-0.13 - 4.90);
// $d = 5.03 degrees

$e = 5.03/360 * cos(deg2rad(51.935)) * 6371 * 2 * M_PI;
$e = 5.03 * 0.617 * 6371 * 2 * M_PI;
// $e ≅ 345 km
?>

Which is a bit shorter than the expected 360km, but that's because we conveniently forgot about the difference in latitude.

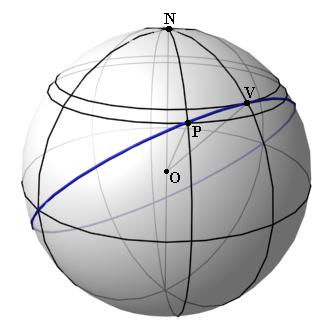

Sadly, we can't use Pythagoras's theorem to calculate the real distance with the latitude difference taken account as well. This is because the theorem is meant for Euclidean geometry, and a sphere does not follow the rules of this geometry. Instead we need to use a formula that is called the great-circle distance formula. The main concept behind it is that a circle is drawn across the whole sphere that connects both the start (point P) as well as the end (point V). Then with that circle the distance can be calculated. The following diagram shows this:


I will spare you how the function is derived, but the distance calculation ends up as being:

<?php
function distance($latA, $lonA, $latB, $lonB)
{
        // convert from degrees to radians
        $latA = deg2rad($latA); $lonA = deg2rad($lonA);
        $latB = deg2rad($latB); $lonB = deg2rad($lonB);

        // calculate absolute difference for latitude and longitude
        $dLat = ($latA - $latB);
        $dLon = ($lonA - $lonB);

        // do trigonometry magic
        $d =
                sin($dLat/2) * sin($dLat/2) +
                cos($latA) * cos($latB) * sin($dLon/2) *sin($dLon/2);
        $d = 2 * asin(sqrt($d));
        return $d * 6371;
}
?>

If we punch in our original numbers form London (51.50°N, 0.13°W) and Amsterdam (52.37°N, 4.90°E), we calculate the following:

<?php
$d = distance(51.50, -0.13, 52.37, 4.90);
echo $d, " km\n";
?>

Which gives us the expected result of 358.07 km.

Conclusion

I hope that the above clarified the difference between 2D spatial indexing with the flat Earth model and spatial indexing of geo-located data (the spherical Earth model). In future articles I will go into specific implementations of spatial indexing by traditional databases such as SQLite, MySQL and PostGreSQL; NoSQL databases such as MongoDB and CouchDB; and Solr.
